Product Introduction

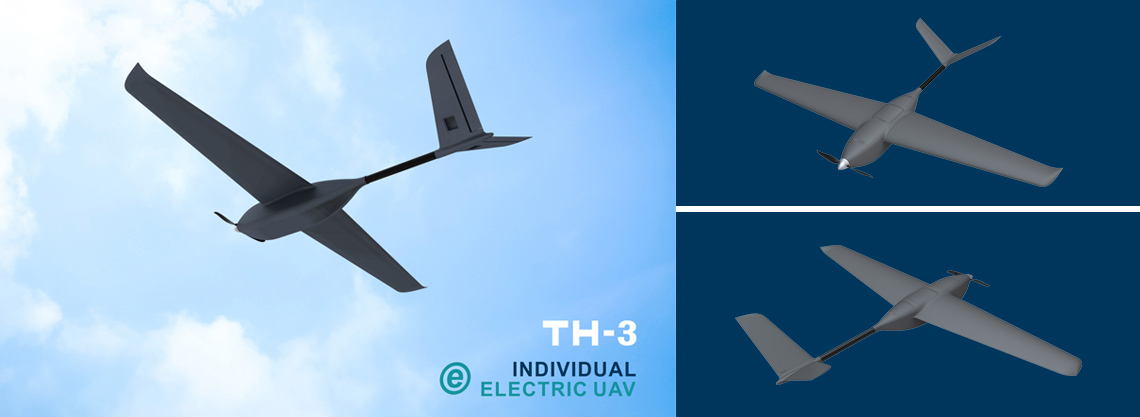

TH-3 Individual UAV adopts modular design and can realize tool-free quick disassembly and assembly, minimum transportation volume and convenient carrying. The UAV system has real-time video capture and transmission and high-precision geographic information acquisition capabilities.

The airborne flight control system can use GPS navigation control, attitude stability control, task management and other functions. It can flying with real-time guidance, point of interest surround and target coordinate estimation. The drone system adopts modular task load design, which can easily replace task module. Typical mission modules include visible real-time video load, thermal infrared video load, aerometry load, tilt measurement load, etc.

Technical Parameters

  • Wing Span: 1.7m
  • Length: 1.2m
  • Max Take-off Weight: 4kg
  • Speed Range: 65km/h~90km/h
  • Max Vertical Speed: 4m/s(above sea level)
  • Flight Altitude: 300m~5000m(relative)
  • Using Overload Coefficient: -2g~+3g
  • Endurance: 80min
  • Visuality: Digital Camera/Infrared Camera/Video
  • Control Mode: RC+auto
  • Measure & Control Radius: ≤20km
  • Wind Resistance: 5~6 Wind Scale
  • Rain Resistance: Light Rain
  • Launch Mode: Hand Launch
  • Landing Mode: Auto Landing/Auto Parachute
  • UAV Assembling/Disassembling Time: <5min
