Product Introduction

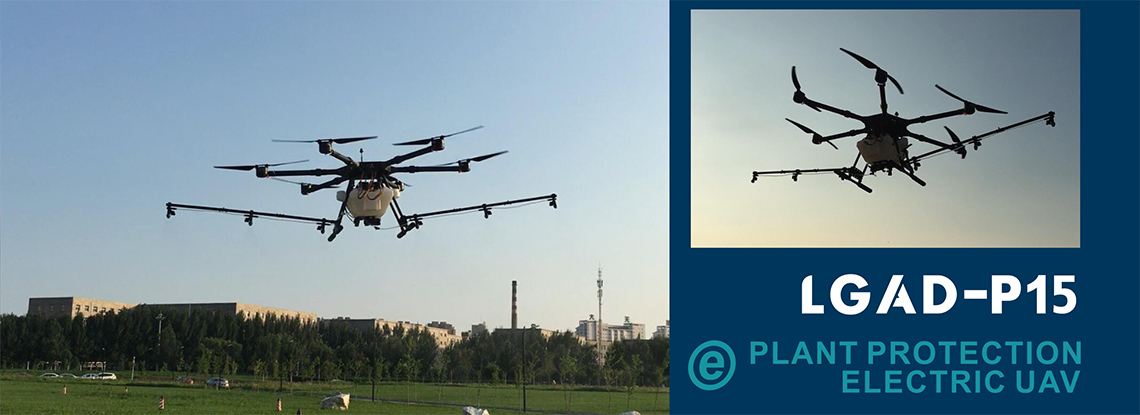

The LGAD-P series drones are a battery-powered multi-rotor aircraft designed for agriculture, forests and grasslands. It can accomplish a variety of tasks including pest control and spraying for paddy plants, wheat, maize, soybean and other crops, foliar fertilization and sowing, etc.

1. EASY MAINTENANCE

Able to withstand harsh conditions, the LGAD-P15 airframe is made of light, durable and high-strength carbon fiber. Modular design and simple structure makes maintenance incredibly simple.

2. INTELLIGENT SPRAYING SYSTEM

The intelligent spraying system automatically adjusts its spray according to the flying speed so that an even spray is always applied. This way, the amount of pesticide or fertilizer is precisely regulated to avoid pollution and economize operations.

3. ACCURATE SPRAYING

Spray nozzles can be chosen according to the properties of each liquid to optimize atomization. Porcelain nozzles are resistant to friction and can be used for thousands of hours without any interruption. The downward airflow generated by the propellers accelerates the spray, increasing its reachability.

4. EASY USE

The advanced flight controller integrated with the aircraft instantly and precisely responds to pilot inputs. The latest intelligent remote control mode allows the spray to pause and resume without missing a spot. The intelligent A to B mode and semi-automatic route planning ensure the LGAD-P15 can work perfectly in irregular shape of fields.

Technical Parameters

  • Diagonal Wheelbase: 1600mm
  • Flying Speed: 0~10m/s
  • Liquid Tank Volume: 15L
  • Spray Rate: 600~1200m²/min
  • Spray Height: 1~3m above plant
  • Spray Width: 5~6m
  • Operating Temperature: 0℃~+45℃
  • Droplet Size: 80~200μm
  • Load Weight: 15kg
  • Operating Time: 15min
  • Battery: LiPo
  • Body Material: Carbon Fiber Reinforced Plastic
  • Flying Height: 0~10m above ground
  • Control Mode: RC+auto
